Stats and Analysis
Stats and Analysis provides a clear overview of your monitoring data, highlighting key trends, exceedances, and summaries. Stats and Analysis tables can also be part to your PDF reports.

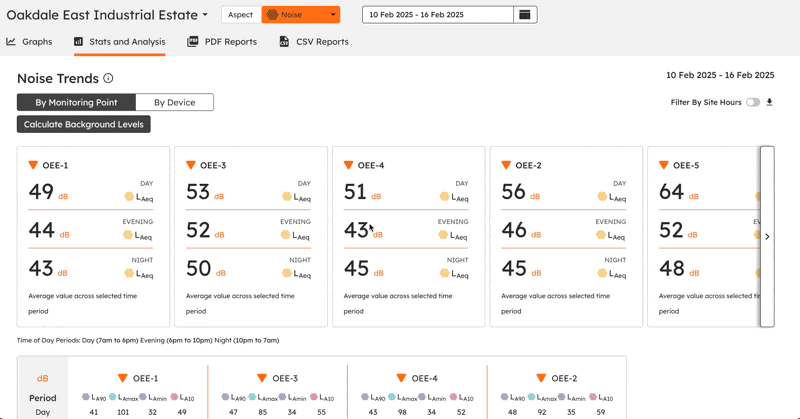

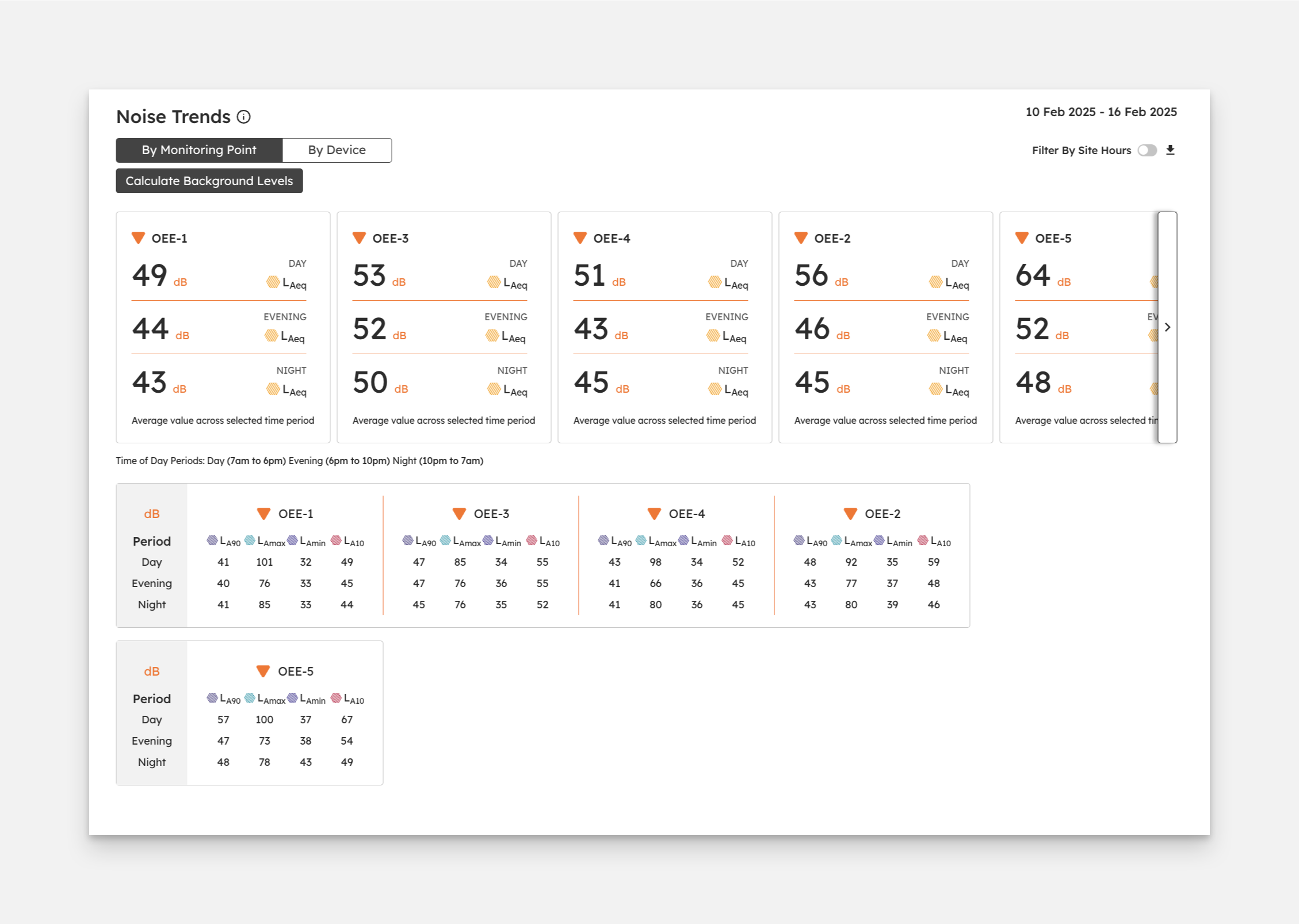

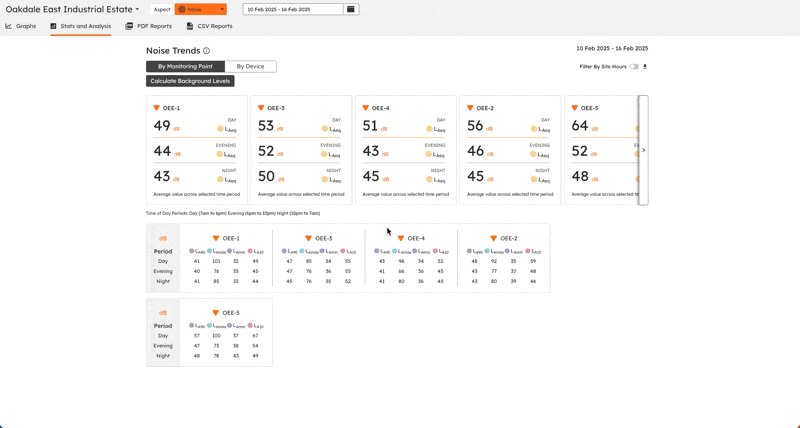

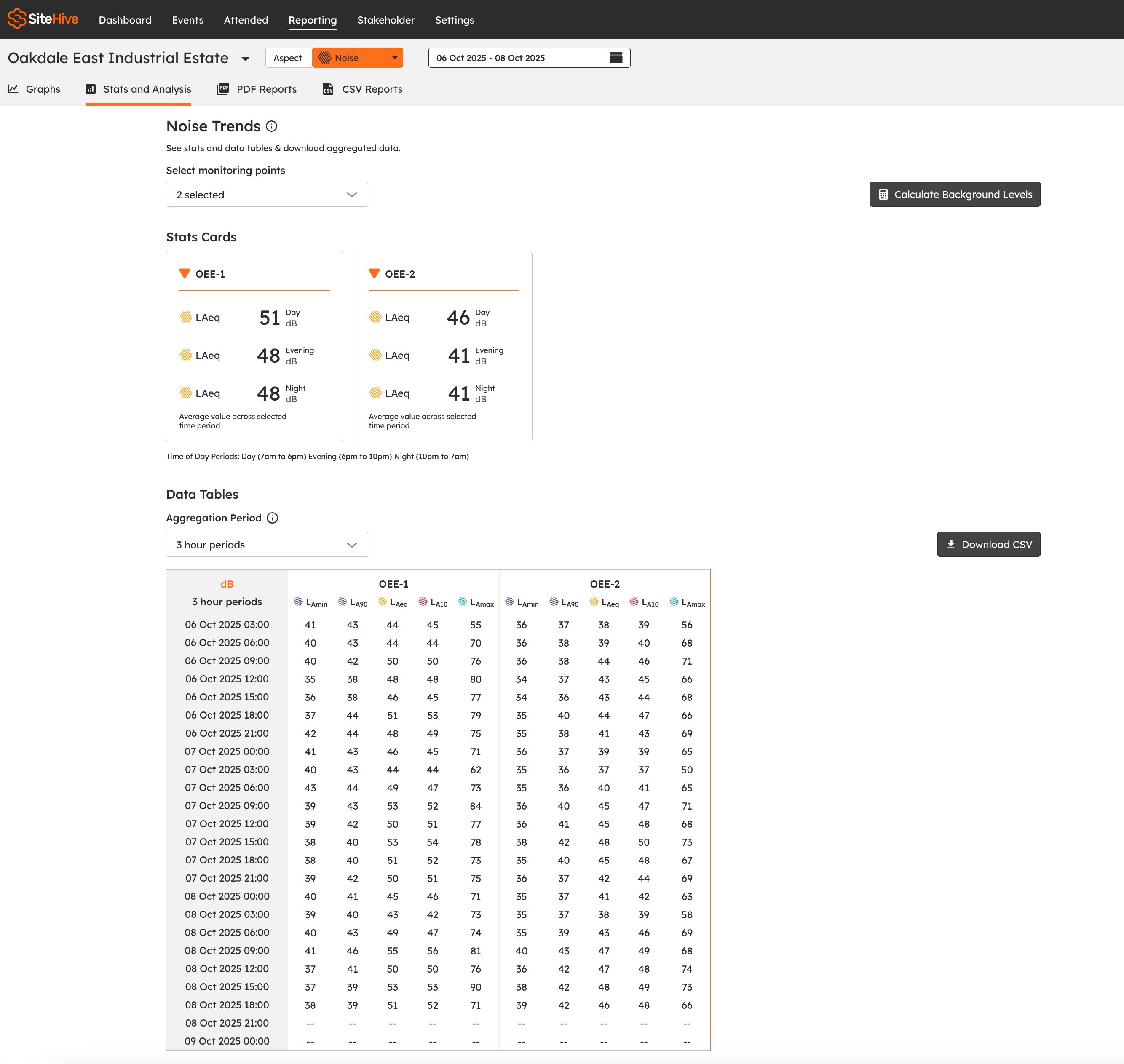

Noise Trends
The Noise Trends section provides insights into noise levels across different monitoring points and time periods.

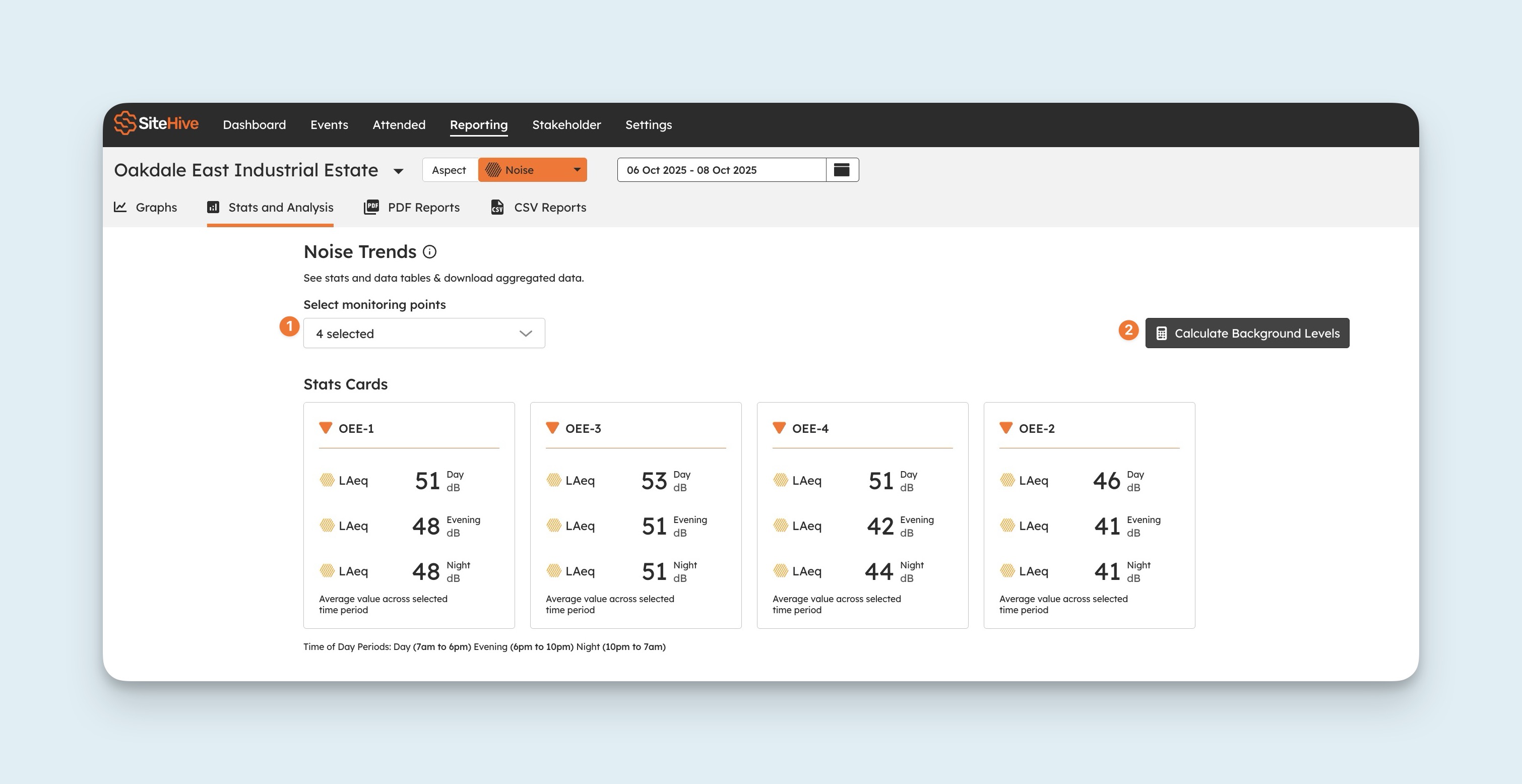

Monitoring Point Tiles
The top section displays LAeq values (Equivalent Continuous Sound Level) for three time periods:
Day (7 AM - 6 PM)
Evening (6 PM - 10 PM)
Night (10 PM - 7 AM)
These values represent the average noise levels during the selected time range.
Additional Noise Metrics
Below the LAeq summary, you will find additional noise metrics:
LA90 – Background noise level (level exceeded 90% of the time)
LAmax – Maximum recorded noise level
LAmin – Minimum recorded noise level
LA10 – Noise level exceeded 10% of the timeThese metrics are broken down into Day, Evening, and Night periods.
Calculating Background Levels (RBL)
You can also calculate the Rating Background Level (RBL), which helps assess long-term background noise trends.

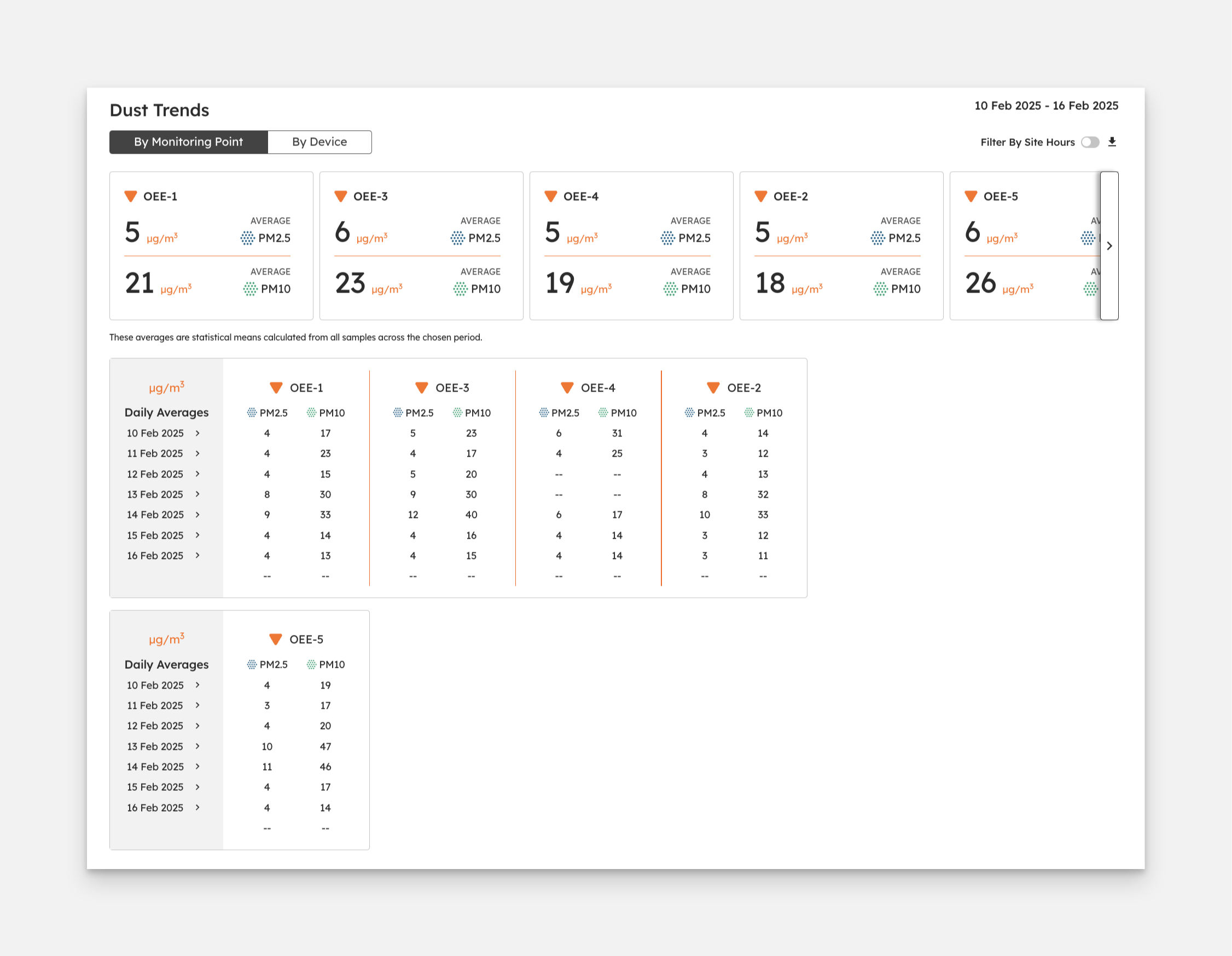

Dust Trends
The Dust Trends section provides an overview of airborne particulate matter (PM) levels.

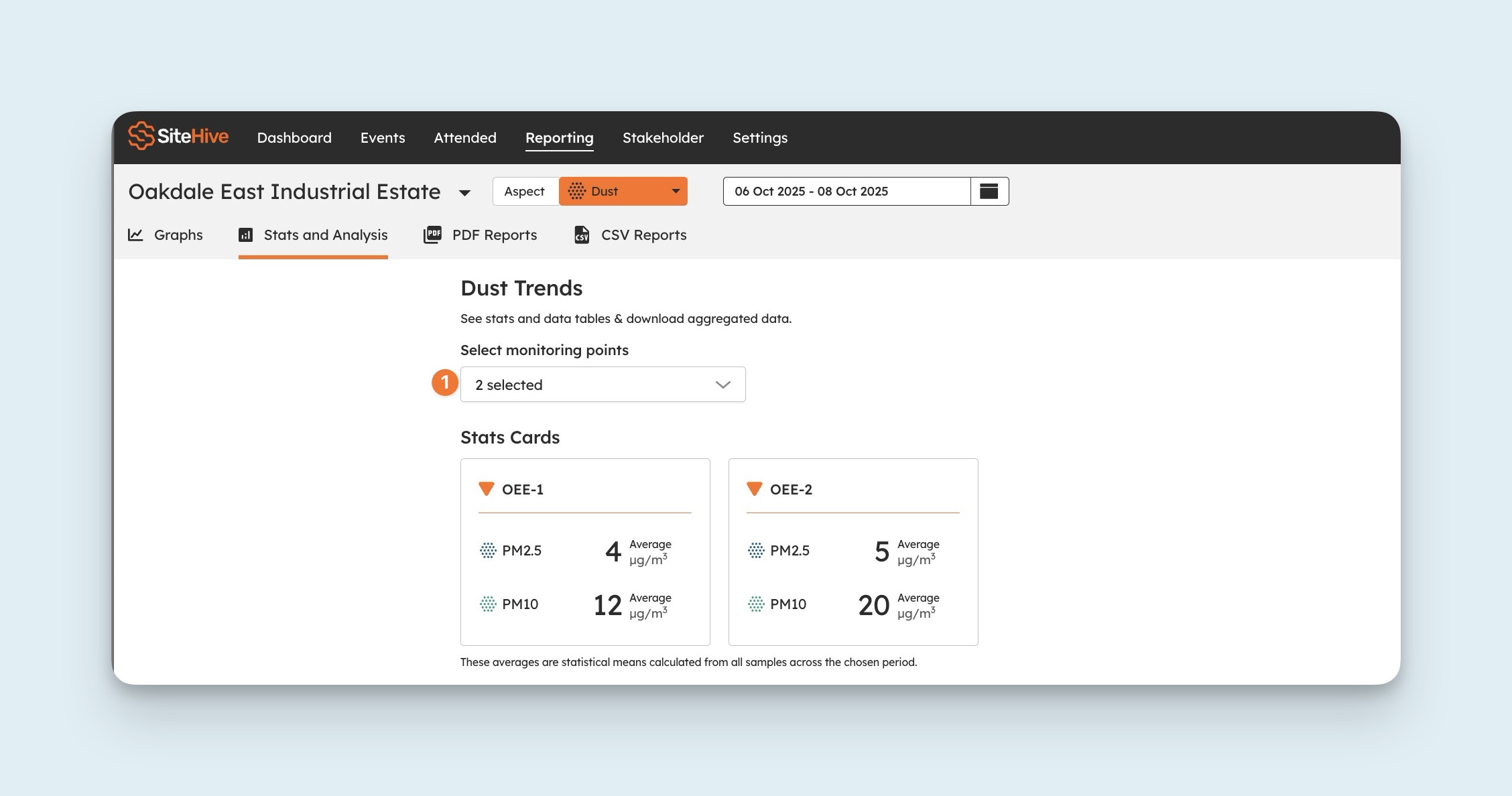

Monitoring Point Tiles
Each monitoring point displays daily average concentrations of:
PM2.5 (Fine particulate matter, ≤2.5 µm)
PM10 (Coarse particulate matter, ≤10 µm)
These values are calculated as statistical means from all samples collected within the selected time range.
Daily Averages Table
Below the monitoring point tiles, a detailed table breaks down PM2.5 and PM10 daily averages for each day within the chosen date range.
Vibration Trends
The Vibration Trends section tracks structural and human comfort vibration levels.

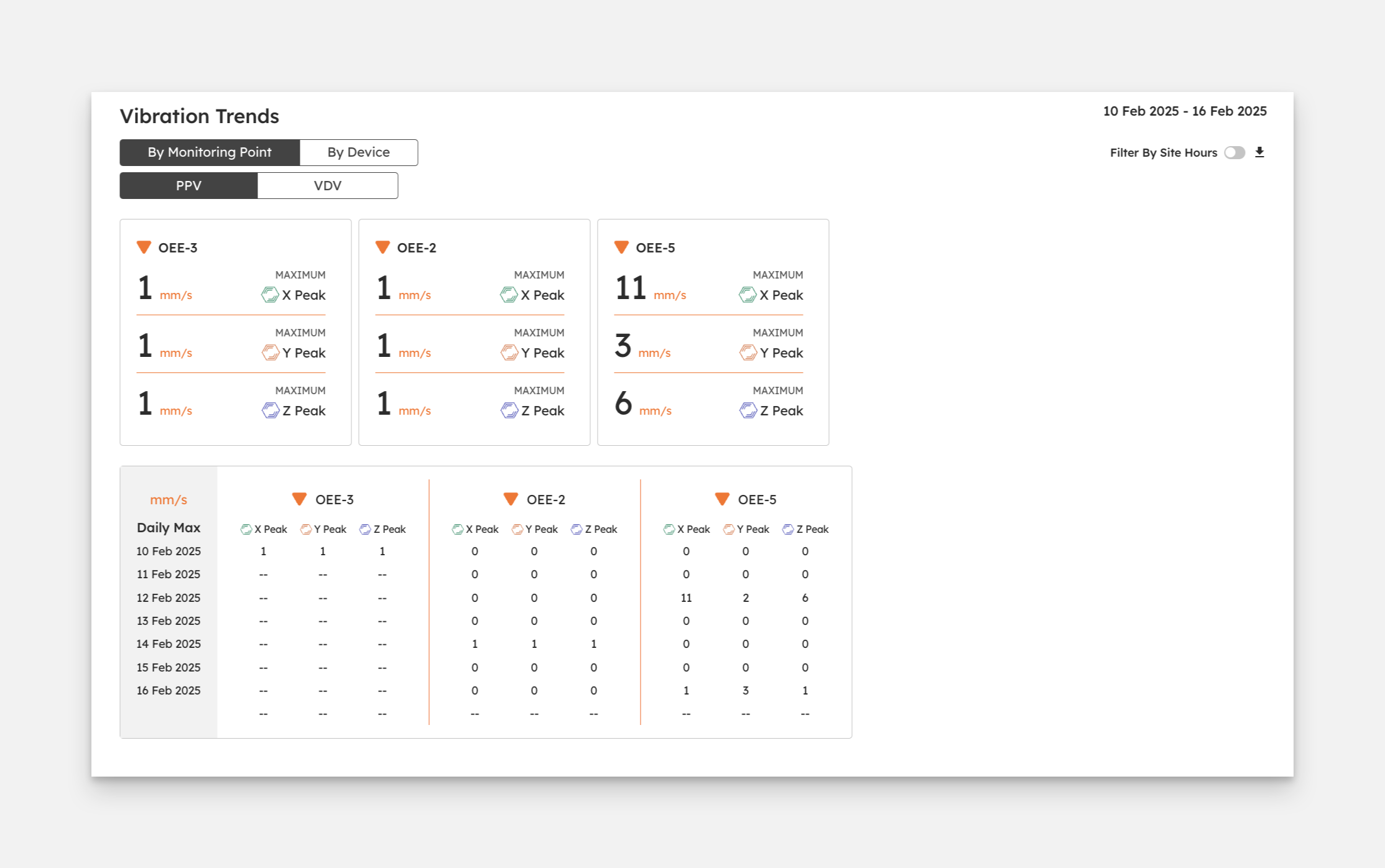

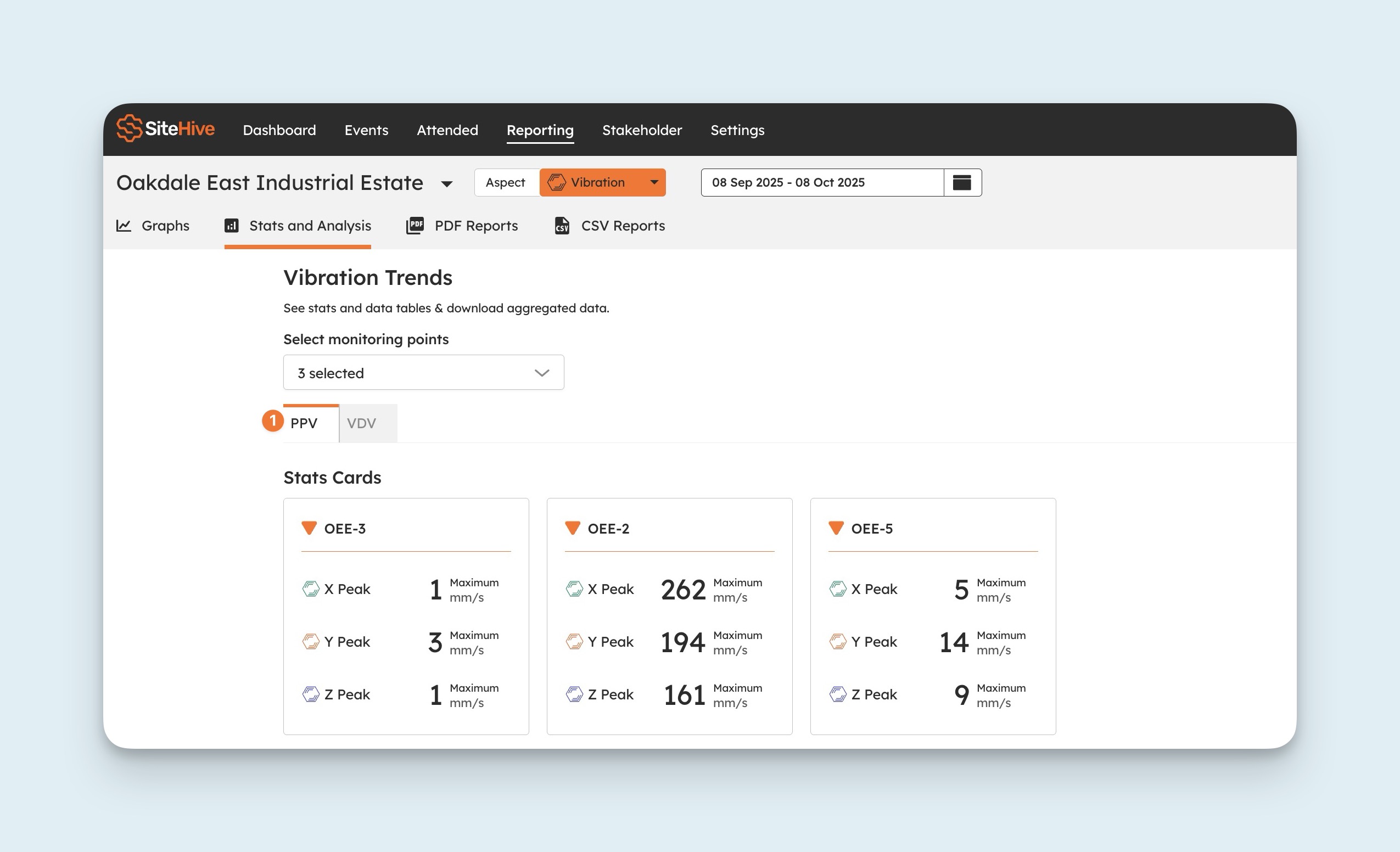

Peak Particle Velocity (PPV) – Structural Impact
Displays the maximum PPV (Peak Particle Velocity) for:
X-axis
Y-axis
Z-axis
The table below provides daily maximum PPV values for the selected date range.

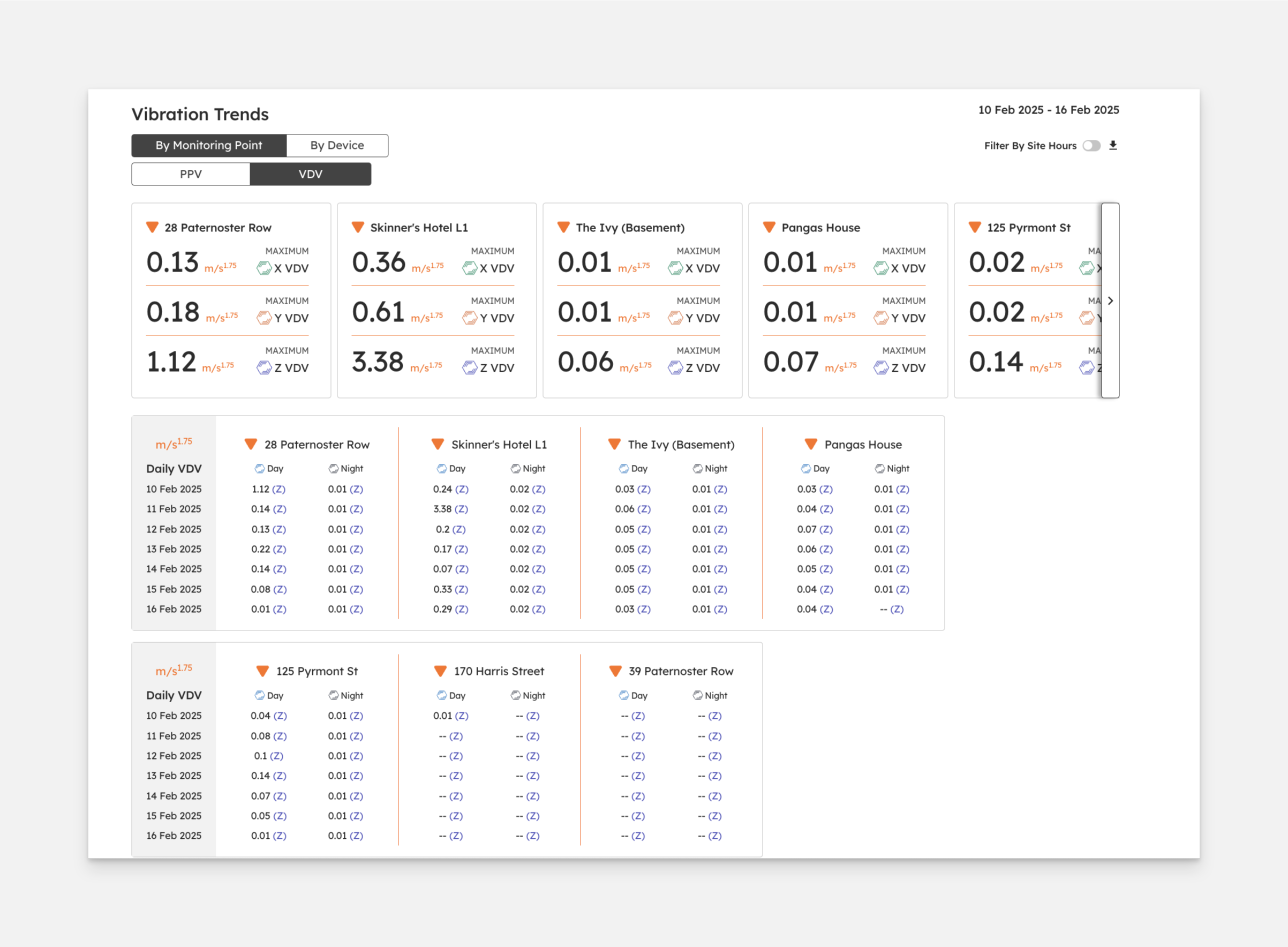

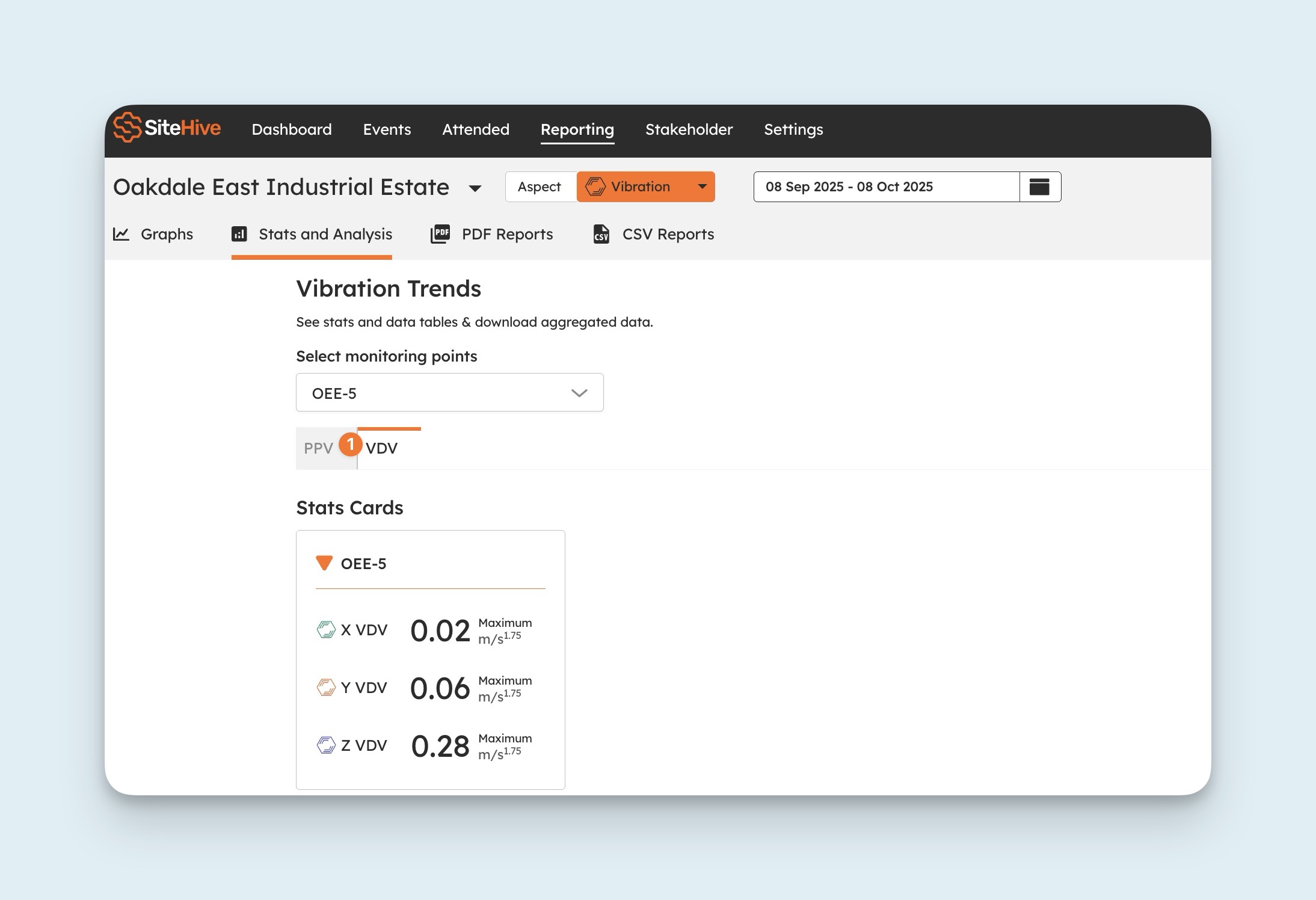

Vibration Dose Value (VDV) – Human Comfort
Displays the maximum VDV values for:
X-axis
Y-axis
Z-axis
The table below shows the daily maximum VDV values (in m/s^1.75) for the selected period.
